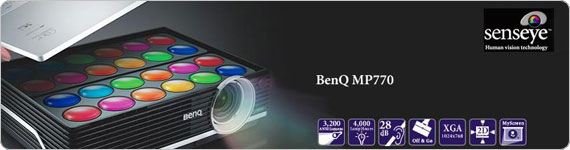

Projetor MP770 3200 ANSI Lumens XGA (1024 x 768)

Vivid True-Color Reproduction

Senseye color enhancement
With its Senseye color enhancement technology, the BenQ MP770 is able to accurately render the subtlest of tints such as natural pastels and skin tones, while the 3D Color Management not only corrects hue and saturation levels but also color intensity for realistic picture quality. Specialized Color Wheel Coating delivers better color saturation on Red and Blue than standard RGB (sRGB) without sacrificing green. Combined with 10-bit image processing, which accurately renders over 1.07 billion colors, MP770 can aslo adjust color layers for enhanced image quality and faithfully reduced colors.



DDP3020 DLP Data Processor
With the newest DDP3020 DLP data processor from TI built inside, MP770 can provide the most vivide image to you. DDP3020 is the next generation DLP data processor component set to integrate all of the system image processing and adds that new BrilliantColorTM technology which provides significant enhancements to white segment processing and secondary color boost, substantially increasing mid-tonebrightness.

BrilliantColorTM technology
BrilliantColor™ is a new, cutting-edge technology that enables higher brightness levels by boosting mid-tone colors, resulting in more vibrant, precisely rendered colors

High Performance

High brightness
With 3,200 lumens to work with, you can use the BenQ MP770 effectively under virtually any lighting conditions. Not only can your audience enjoy superb picture quality, but you can spare them from annoying glare and the need to squint to make out what's on screen.

Whisper-quiet
At only 28dB, the sound of BenQ MP770's operation never gets in the way of a presentation. Free from distractions of unwanted noise, your audience can focus on your presentation.

Thoughtful Designs

Digital Zoom
Need to zoom in on that hard to see part of the screen? Even if your software fails in this area, the BenQ MP770 offers 800% zoom, giving you complete control.

2D Keystone Correction
Ever have trouble getting the projection image squared on the wall? This unique feature can compensate for image distortion up to ±40% vertically and ±20% horizontally—
no matter where the projector is located.

Remote Control
The BenQ MP770's remote control exemplifies the ultimate in user-friendly design, with a hotkey layout that is congruent to the hotkey layout on the projector, for maximum ease of use. A handy laser pointer lets you highlight key points during your presentations or lectures.

My Screen
This feature lets you easily set your own start-up screen to any images you like, whether a company logo or a favorite photograph (BMP, screen capture from MPEG video or JPEG) with just a press of a image capture button located in the remote control.

Application Modes
The BenQ MP770 is ideal for much more than presentations. Nine application modes provide instant optimized settings for brightness, color saturation, and contrast, ensuring the best performance for not only presentations, but also other applications such as movie viewing and gaming.
In addition, the MP770 also allows users to save two custom preference modes covering brightness, contrast, color saturation, hue, sharpness, white peak gamma, and color temperature, allowing you to quickly access personalized settings for your particular needs.

Universally Designed Icons and User-Friendly Interface
It's comforting to know that you'll feel right at home with the BenQ MP770's icons. Like finding your way around your favorite gadget or appliance, the MP770's interface is both straightforward and easy to use—no matter what country you're from.

Front Ventilation
By routing air out the front, the BenQ MP770 spares your audience the annoyance of hot air blowing on them and light leaked from of ventilation slots.

Picture-In-Picture
PIP allows you to simultaneously display PC and video sources. (A video source within a pc source) You can combine live feeds, movies, presentations, and more. The possibilities are endless!

The Most Reliable Choice

Long Lamp Life
With 4,000 hours of lamp life*, typical users won't need to replace lamps for two years or more.
* In economy mode

Extra-fine Dust Filter
Invisible dust particles can easily damage sensitive projector components, increasing maintenance costs. That's why BenQ has included a specially designed dust filter that traps even microscopic debris before it enters the inside of the projector.

Off & Go
The BenQ MP770 incorporates an advanced off & go feature that can cool off even when the projector is unplugged. This handy feature is possible because its unique design allows the MP770's cooling fan to continue operating even after it is unplugged. That means after you finish a presentation, there's no need to wait for the cooling process to complete before leaving the venue. The system also guards against damage from power outages while the projector is operating.

Quick Cooling
Cooling time itself has been reduced by over 60%, saving your time and minimizing the risk of heat damage to sensitive internal components.

Auto-off
When no data source is detected for a predetermined time, the BenQ MP770 will automatically shut down, saving power and preventing overheating of the projector.

Password Protection
The BenQ MP770 is equipped with a password protection feature that prevents unauthorized use by requiring that the correct password be entered before an input source is accepted.

High Altitude Mode
This mode allows the BenQ MP770 to be operated even under adverse conditions, such as high altitudes or high temperatures. In addition, its thermal design includes two autonomous cooling fans for the lamp and DMDTM chip to ensure optimum performance and maximum device life.



Equipped For the Wireless World - LinkPro (Optional)

Wireless Connectivity
When you don't want to be bothered with cables, use the LinkPro WiFi module to run your presentation from a notebook computer wirelessly. The BenQ Wireless Wizard software makes it easy, with automatic connections and easy switching among multiple notebooks.

Network Cable Connectivity
For computers without WiFi, LinkPro let you connect via an Ethernet cable. You can even allow multiple computers to access the projector by using a switching hub.

* The LinkPro wireless module is only compatible with the BenQ MP770, MP720, and MP720p.

Input/Output Terminals
1. Rear IR remote sensor
2. USB socket
3. RS232 control port
4. RGB signal output socket
5. RGB (PC) / component video (YPbPr/YCbCr)signal input socket
6. DVI-I signal input socket (without HDVI support)
7. Video socket
8. S-Video socket
9. Audio input socket
10. Audio output socket
11. Filter case
12. AC power cord inlet
13. Speaker External Control Panel (Detail)

External Control Panel
1. Power indicator light
2. Temperature warning light
3. Lamp indicator light
4. Power
5. Mode: Application mode hot key
6. Menu/Back
7. Left/Keystone(Vertical)
8. Blank
9. Down/Keystone (Horizontal-)
10. Source
11. Right/ Keystone (Vertical)
12. Auto: Auto adjusting image
13. Up/ Keystone (Horizontal +)
14. Enter
